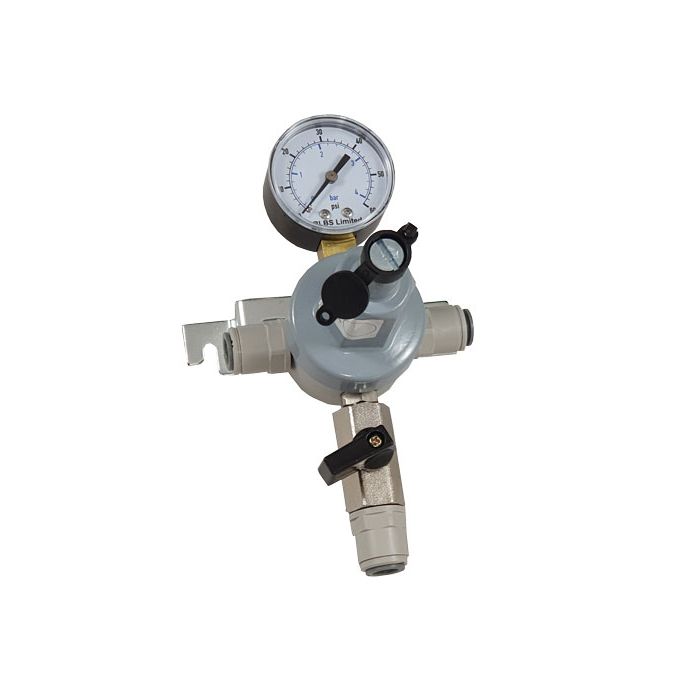

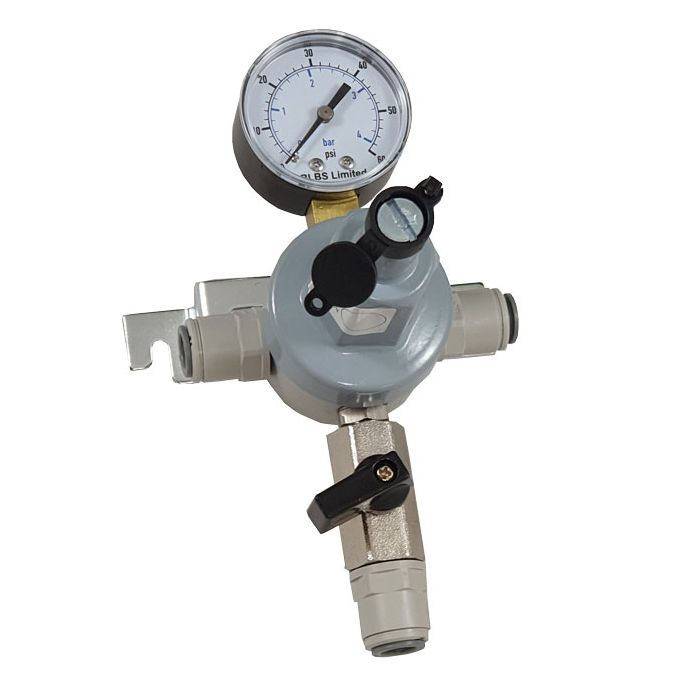

V3002G Secondary Reducing Regulator with Pass-Through (Wall Mount) with 1 Gauge

Used after primary bottle or compressor regulator to fine tune or reduce pressure to your selected element or piece of equipment within your beer dispense system. Has 3 ports (1) inlet, (2) unregulated pass-through outlet, and (3) regulated outlet with pressure reducing adjustablility.

• Pre-set outlet pressure 35 psi / 2.4 bar (yet adjustable from 0 – 45 psi)
• Outlet pressure gauge 0 – 60 psi / 0 – 4.1 bar
• John Guest Push-fit Ports – 3/8” Female
• Wall/Panel Mounting Bracket
• On/Off Valve on Regulated Outlet

Please note: gas dispense equipment must be installed and maintained by a competent person(s)

If you are not using the pass-through port to go onto another secondary regulator you will need to blank off the unused pass-through port with a blanking plug (part - PI0812S - John Guest 3/8" Blacking Plug).
